SPECIFICATIONS

Average Life (hrs): 50000

Brand Name: MJJC

Certification: ce,EMC,LVD,ROHS,UL

Choice: yes

Color Temp(K): 6000K

High-concerned chemical: None

Is Batteries Included: No

Is Smart Device: No

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: COB

LEDs Number/M: 360

Luminous Flux: 249-2000

Nominal Voltage: 24V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 360

Strip type: COB

Voltage: 24v

Waterproof: No

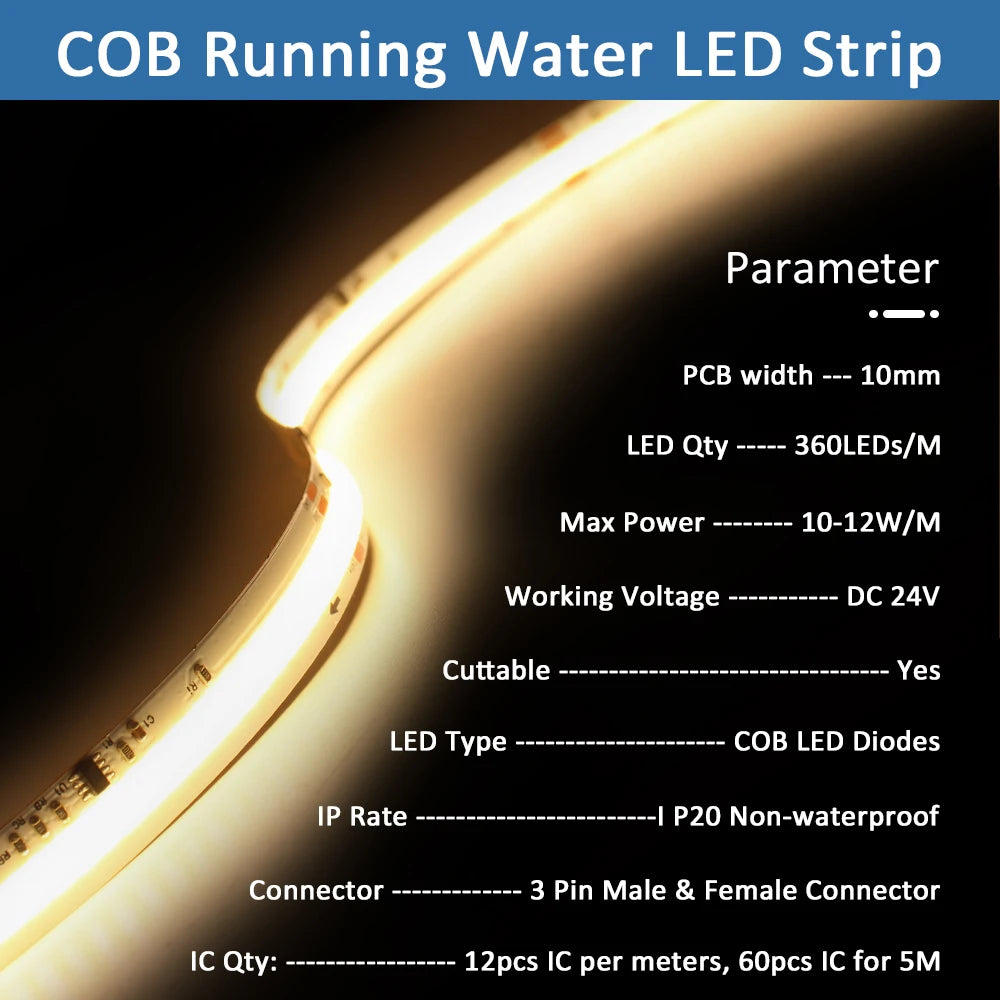

Parameters:

Product Name: WS2811 IC COB Horse Race Led Strip
LED Type: COB LED Diodes
LED Qty: 360LEDs/M
PCB width:10mm
Max Power: 10-12W/M
Working Voltage: DC 24V

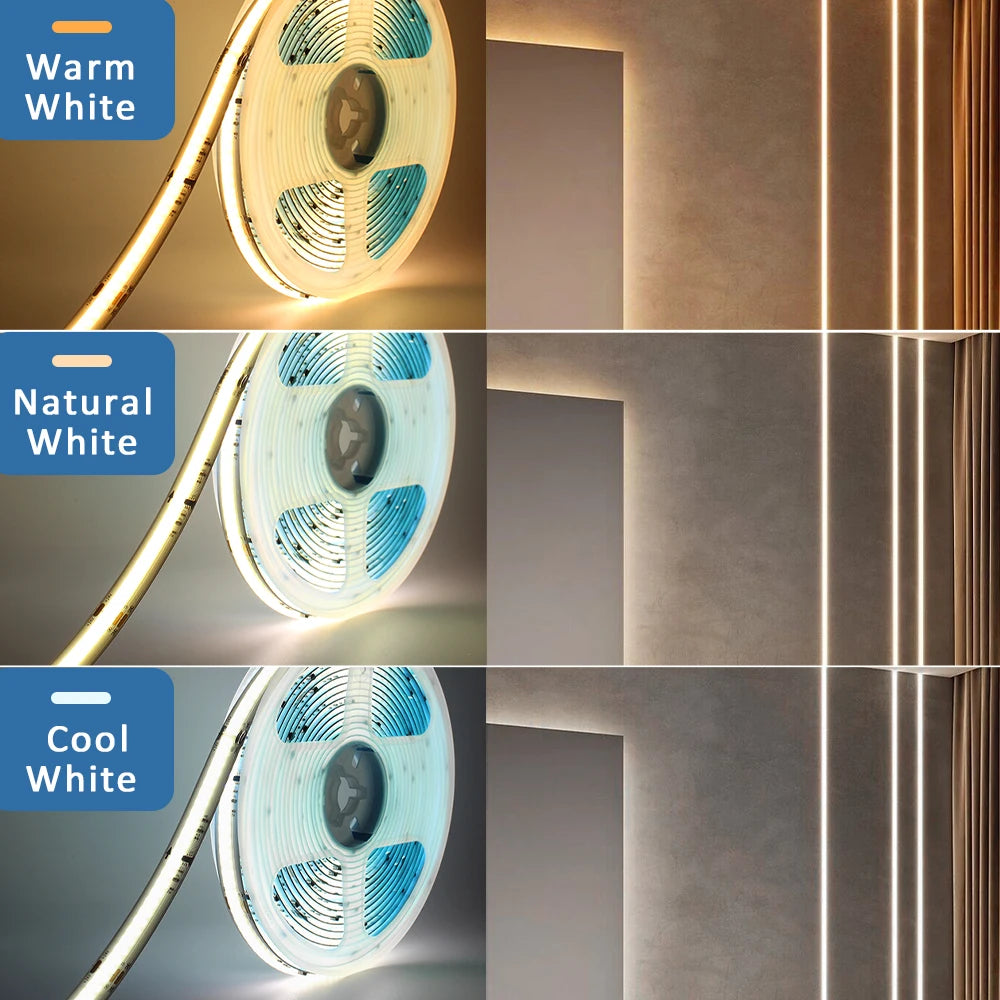

Color: Cool White / Warm White / Natural White
Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K
IP Rate: IP20 Non-waterproof
Connector: 3 Pin Male & Female Connector

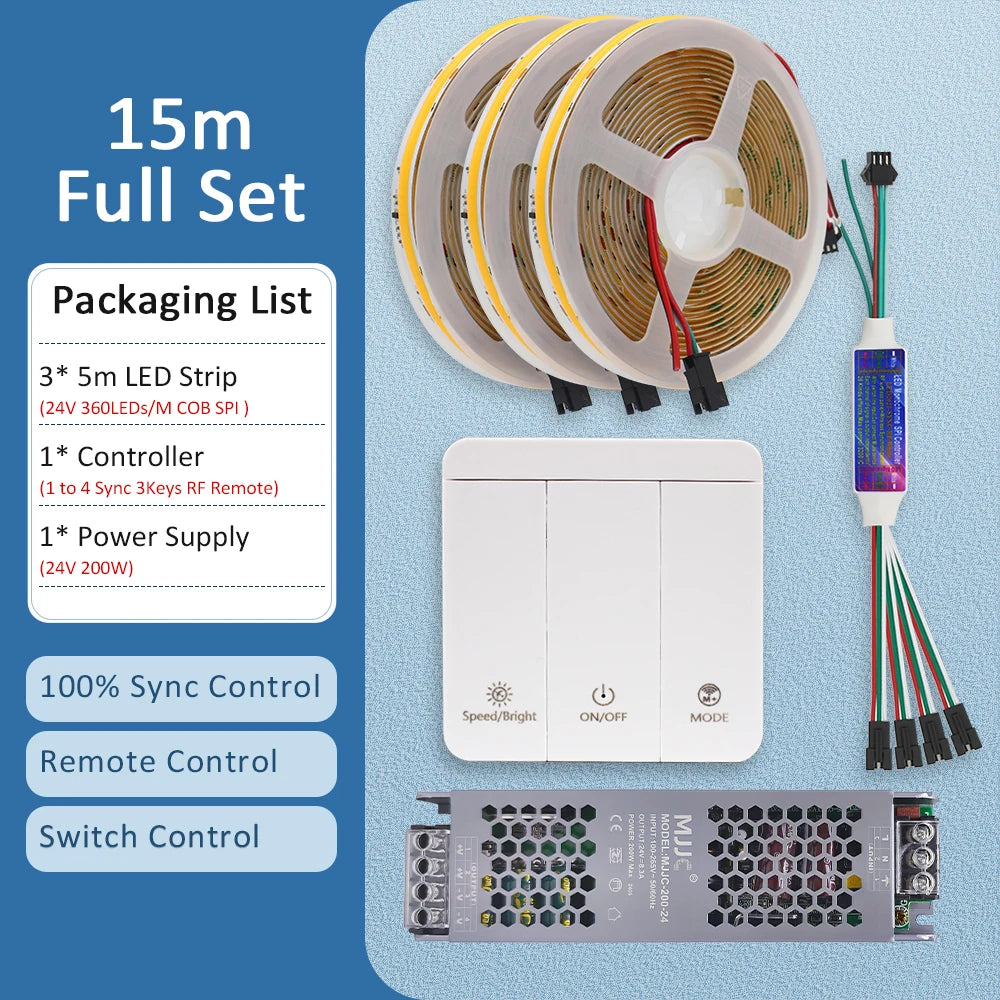

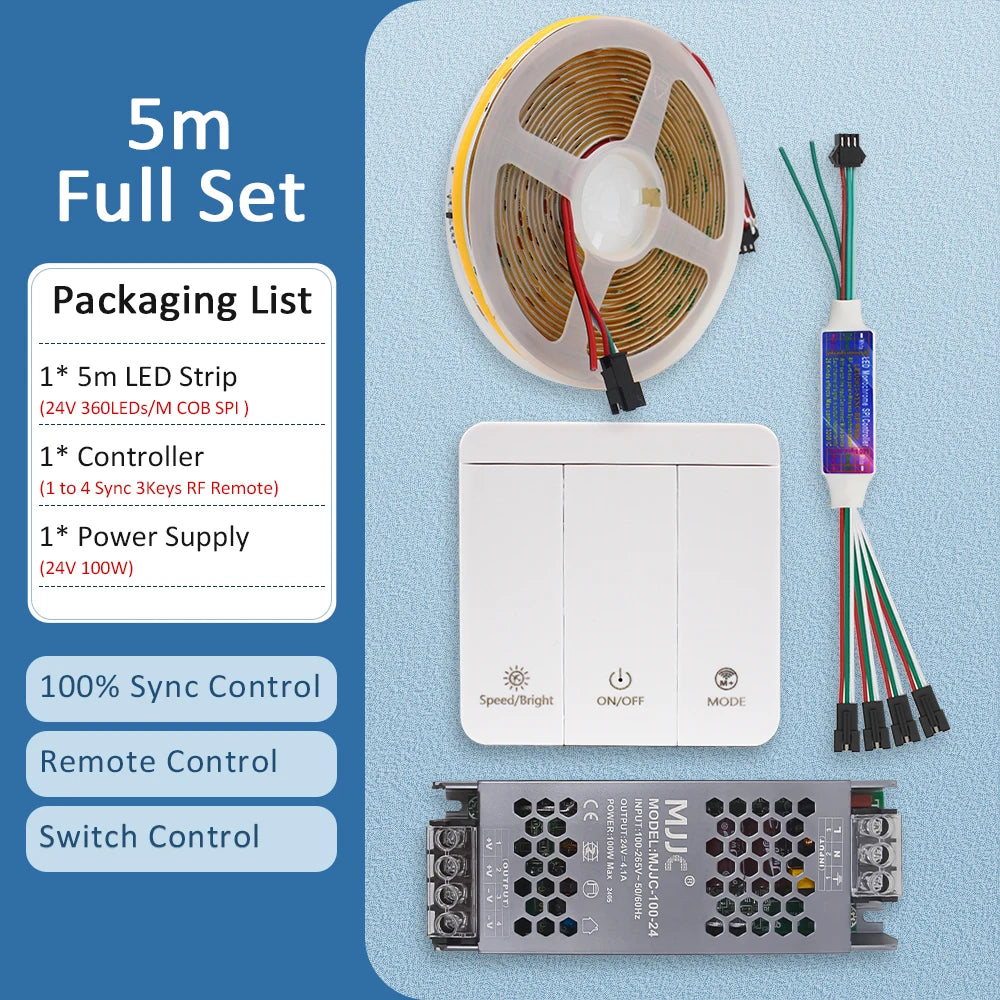

Package: 5M/Roll

Connection:
Red Wire: +24V
Green Wire:DI/DATA
White/Black wire: GND / -24V

*** Product Parameters of the Controller:
Product Name: Single Color Horse Race Led Strip Controller
Working Voltage: DC24V ( The controller dont connect to the power supply)
Control Distance: < 20m
Battery Type: CR2032 button cell ( Not included)
Modes: 26 Different modes built-in controller.

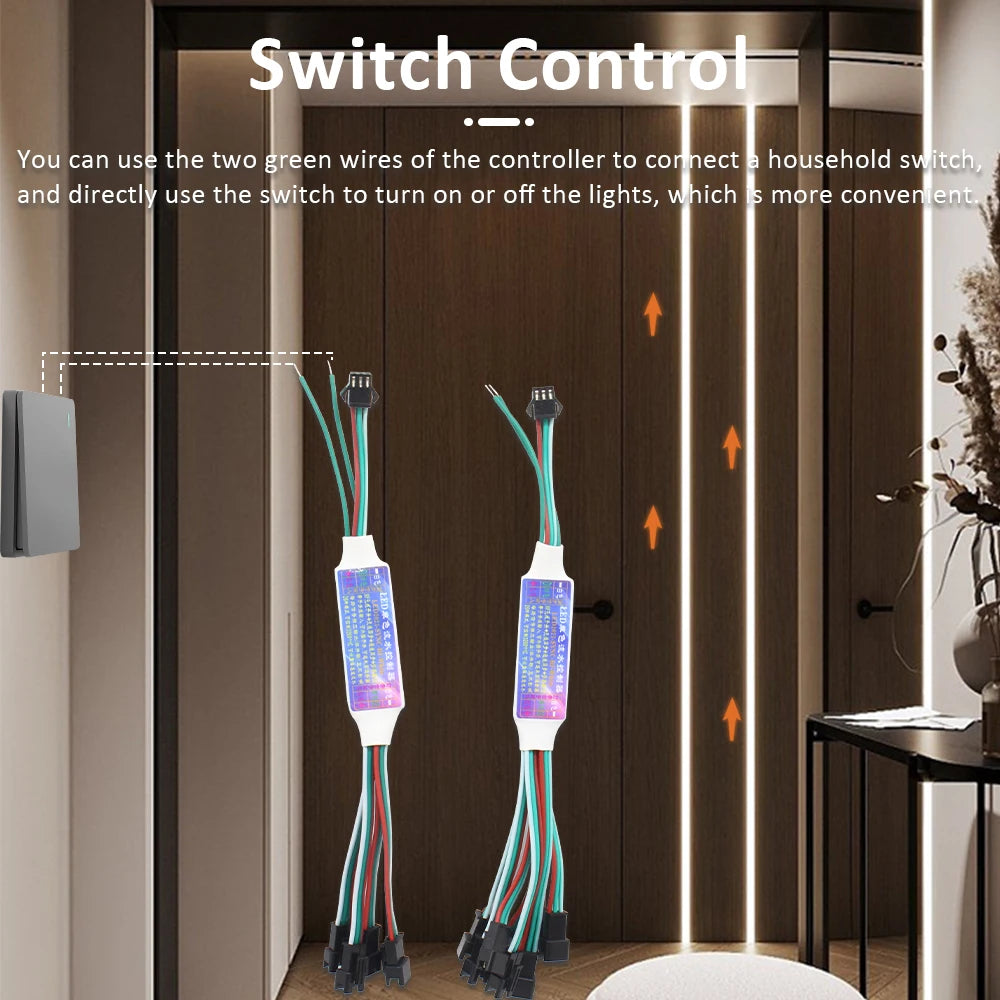

With Switch Function ( Green Wire connect to a normal switch): Turn ON,the lights running, Turn OFF, the lights backflow.
Max Pixel Control:Max Control Pixels: 3200pcs Pixels,if more than 3200pcs pixels,just add extra receiver or amplifier to realize sync working.
Installation: With 2pcs double-side tape,anywhere to stick.

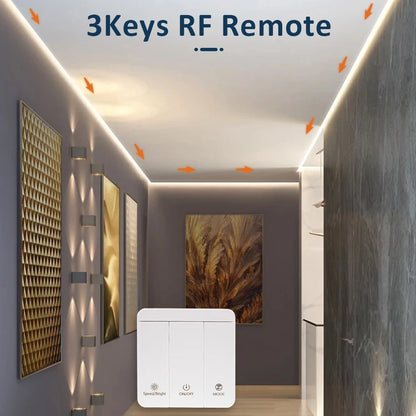

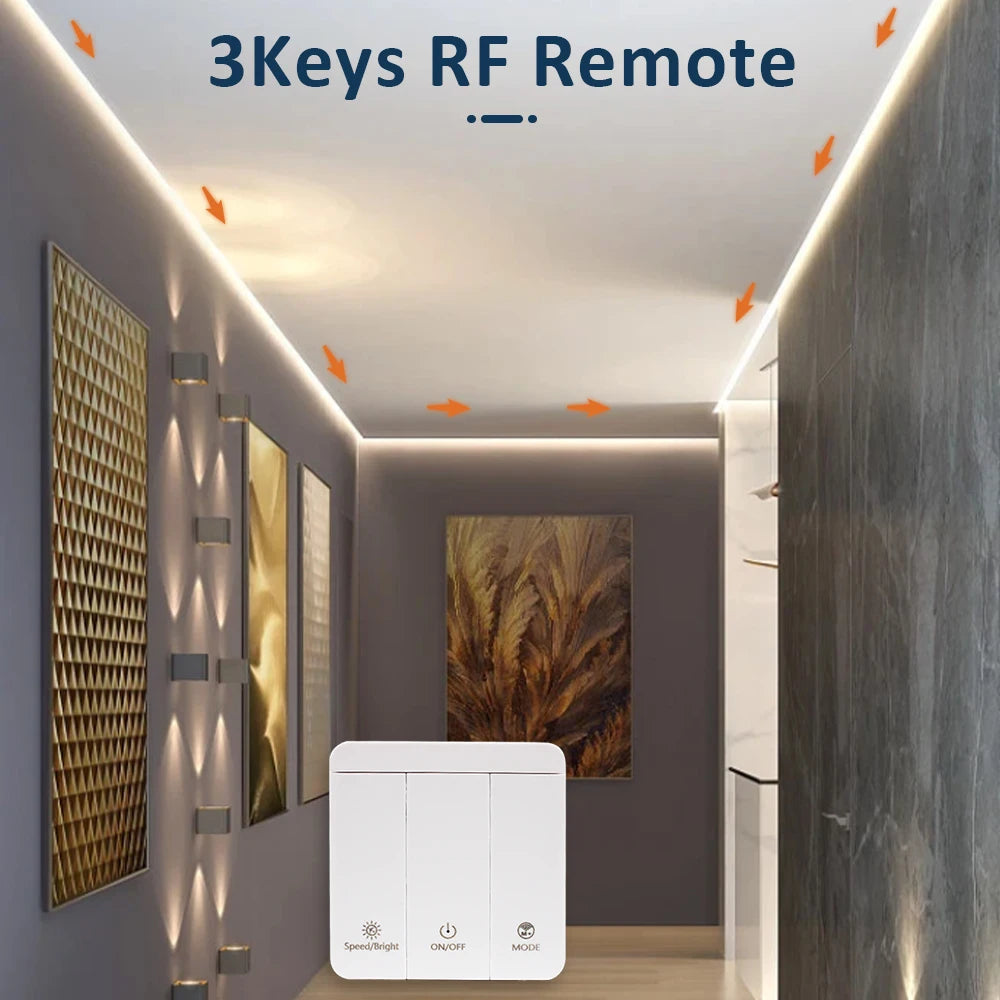

3Keys Remote Function: ON/OFF, Model Key, Brightness UP/Down,Speed UP/Down

*** Features:
1. one receiver can be controlled by max 6pcs 3keys panel remotes.
2. Two or more receivers can be connected together,realize sync working. The wire between two receiver can be up to max 10metes for extension. Best choice for projects sync working.
3. The controller can be work with normal switch, Turn ON/OFF by the switch without remote.It also can connect to Mihome Smart Switch to realize voice control.

*** Sync Projects:
Wire Connection Sync Working: 99.99% sync(Recommend)
Wireless connection sync working: Maybe has delay



*** How to pair Remote to the Receiver,make them working independently ?
Step 1: Turn on the power supply.
Step 2: Long press "Mode"keys 3seconds within 2 seconds after powering ON.
Step 3: Sucessfully if the led strip quick flash 3 times.

1pc receiver can be controlled by max 6pcs panel remote.

- IF you led strip only 10-12m working,please do "pixel setting" on the remote. NOT quality problem.
*** How to setting pixels?
Step 1: Turn OFF the lights
Step 2: Long press "Mode" keys 5 seconds,press "Speed" keys to increase the pixels quantity, Press "Mode" keys to decrease the pixels quantity.
Step 3: Press " ON/OFF" to save, Exit.
Default factory setting is 80pixels,max up to 3200pixels. If you found some led strip is not light, please kindly do pixel setting as above steps.

IF Your Led strip is flickering, this is Not quality problem.

Just connect all led strip to the power supply in case of voltage-drop as following photo shows:
